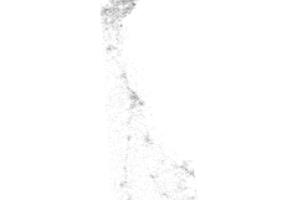

Name: 2017 Impervious Surface

Display Field: Value

Type: Raster Layer

Geometry Type: null

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P STYLE="margin:0 0 0 0;"><SPAN>The impervious surface data created by AIS for the 2017 Update was produced to the same level as the State’s previous datasets, per the project requirements. The 2017 Impervious Surface data layer was created using a combination of ArcGIS’ Image Classification and raster data editing toolsets. The State provided AIS with their 2017 state-wide, 4-band image (in SID format) which was clipped using the boundary of each production modules (45 in all). Each production module image was resampled to a resolution of one meter; then Arcmap’s Segment Mean Shift function was using to produce a segmented image. A training set was created for each production module segmented image and Arcmap’s Maximum Likelihood Classification tool was used to produce a classified image with three pixel values ( 1 = Impervious Surface, 2 = Pervious, and 3 = Shadow). Each classified image was further processed to add water pixels, derived from NHD waterbody polygons, and road pixels, based off of the State’s centerline data. Using Arcmap’s Reclass tool, each image had the Pervious class and Water class combined and the Impervious class and Road class combined. The shadow class processed by converting all shadow pixels to noData, then using the image processing tool Nibble, the noData values were converted to either Pervious or Impervious values. The classified images, now with two pixel values (value 3 was removed), were now ready for visual review and editing.</SPAN></P></DIV></DIV></DIV>

Service Item Id: 3406f2d7ad6e4d00af7f6e65f6311020

Copyright Text: Mapped by Aerial Information Systems, Inc. of Redlands, California for the Delaware Department of Transportation

Default Visibility: false

MaxRecordCount: 0

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: false

Supports Statistics: false

Has Labels: false

Can Modify Layer: false

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 167809.5976
YMin: 50053.249999998996
XMax: 232799.5976
YMax: 204472.24999999898
Spatial Reference: 26957  (26957)

Drawing Info:

N/A

Advanced Query Capabilities:

Supports Statistics: false
Supports OrderBy: false
Supports Distinct: false
Supports Pagination: false
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: false
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeNone

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• VALUE ( type: esriFieldTypeInteger, alias: VALUE )
• COUNT ( type: esriFieldTypeDouble, alias: COUNT )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
